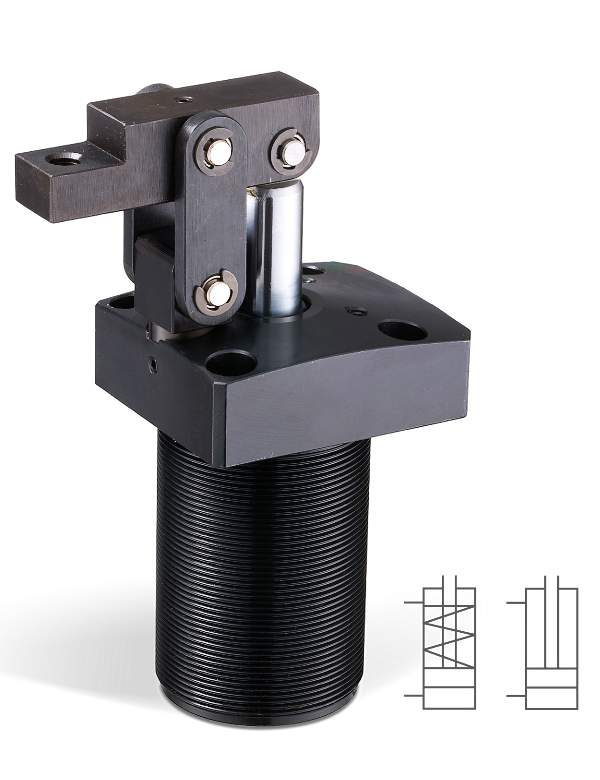

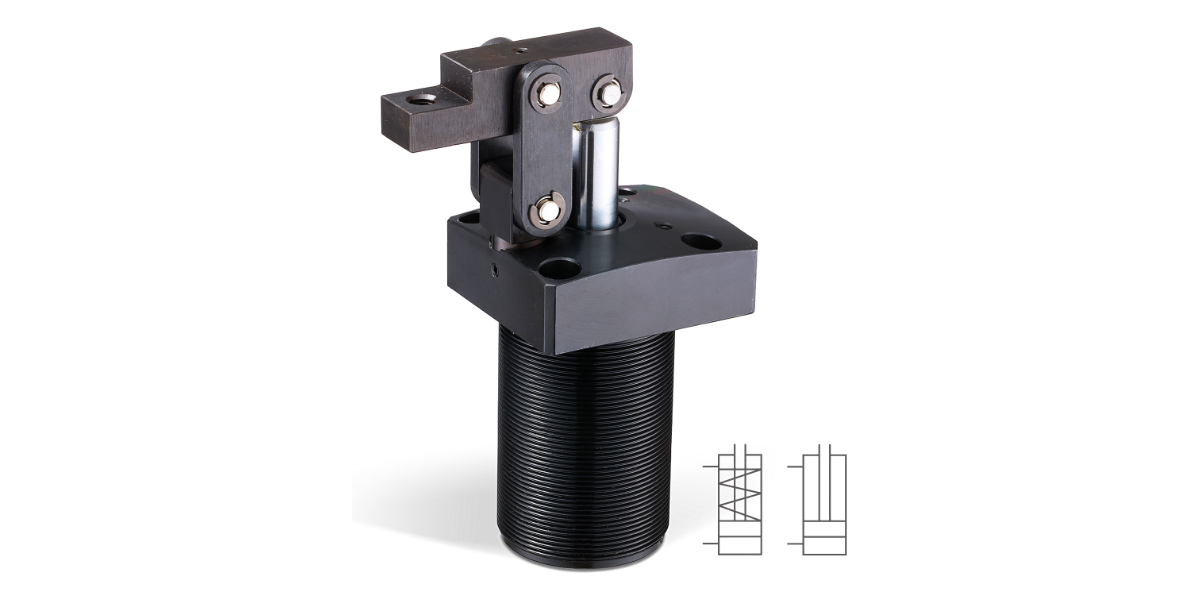

HLCF Hydraulic Link Clamp
Hdyraulic Link Clamp - Hydraulic Cylinder :
- threaded body with upper flange
- compact clamping cylinders with high clamping forces at low supply pressure
- long time endurable quality for industrial application
- Material cylinder body and clamping arm : C45 steel
- Material piston/rod : Case-hardened steel, ground.
- Clamping forces 1,6kN to 16,7kN
- Clamping force depends on the clamp arm length and hydraulic pressure.
- complete with clamping arm
- Min. operating pressure : 20bar
- Max. operating pressure : 70bar
- Range of Temperature : -10 ~ +70°C
- optional simple or double acting
- Hydraulic pressure connection optional in manifold type with O-Ring or line type with PT-port piping
- Use flow control valve for meter-in control.
➝ CAD-files and prices on Request !
Ordering Indication : HLCF - D 40 C R A W
| ① | SERIES | HLCF | |
| ② | Acting Type | D : double acting S : single acting |
|
| ③ | Hydraulic cylinder Inside diameter | ø25, ø32, ø40, ø50, ø63 | |
| ③ | speed control | (optional) speed control | |
| ④ | Lever arm direction | Blank: Standard front side R: Right side L: Left side |
|
| ⑤ | cylinder body moulding | (optional) | |
| ⑥ | optional Welding Accessory | (optional) with modified dimensions ! |
| Model No. | Clamping fore at 70 bar (kN) | Clamping stroke (mm) | Total stroke (mm) | Oil capacity Clamp [cm3] | Oil capacity Unclamp [cm3] | eff. piston area clamp [cm2] | eff. piston area unclamp [cm2] |
|---|---|---|---|---|---|---|---|
| HLCF-S-25 | 1,58 | 22 | 24 | - | 11,78 | - | 4,91 |
| HLCF-D-25 | 2,68 | 22 | 24 | 8,09 | 11,78 | 3,37 | 4,91 |
| HLCF-S-32 | 2,43 | 28 | 31 | - | 24,92 | - | 8,04 |
| HLCF-D-32 | 4,12 | 28 | 31 | 18,69 | 24,92 | 6,03 | 8,04 |
| HLCF-S-40 | 3,88 | 30 | 33 | 41,45 | 12,56 | ||
| HLCF-D-40 | 6,59 | 30 | 33 | 34,82 | 41,45 | 10,55 | 12,56 |
| HLCF-S-50 | 6,18 | 30 | 33 | - | 64,78 | - | 19,63 |
| HLCF-D-50 | 10,49 | 30 | 33 | 54,42 | 64,78 | 16,49 | 19,63 |
| HLCF-S-63 | 9,80 | 30 | 33 | - | 102,83 | - | 31,16 |
| HLCF-D-63 | 16,62 | 30 | 33 | 92,47 | 102,83 | 28,02 | 31,16 |
| MODEL | A | B | C | C1 | C2 | D | E | F | G1 | G2 | G3 | G4 | G5 | G6 | H | I | J1 | J2 | K | L | Line- Type | M | N | Z | S | α | O-Ring | Q |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HLCF-S-25 HLCF-D-25 |
128,5 | 86,5 | 25 | 16 | 17 | Φ6 | 50 | 55 | 41 | 18 | 26 | 6,5 | 4,5 | 7 | 2 | M40x1.5 | 50 | 60 | 37 | Φ5.5-Φ9 x5.5D |
2-PT1/8 | 23 | 26 | 25 | M6 | 75° | P7 | ø14 |
| HLCF-S-32 HLCF-D-32 |
149 | 97 | 25 | 18 | 20 | Φ6 | 57 | 68 | 52 | 22 | 33 | 8 | 5 | 8 | 3 | M50x1.5 | 60 | 70 | 45 | Φ6.5-Φ11 x6.5D |
2-PT1/8 | 23 | 30,5 | 30 | M8 | 75° | P7 | ø16 |
| HLCF-S-40 HLCF-D-40 |
157 | 97 | 25 | 20 | 25 | Φ8 | 60 | 75 | 56 | 24 | 33 | 13 | 4 | 10 | 3 | M55x1.5 | 65 | 75 | 50 | Φ6.5-Φ11 x6.5D |
2-PT1/8 | 26 | 33 | 32,5 | M8 | 75° | P7 | ø16 |
| HLCF-S-50 HLCF-D-50 |
174 | 104 | 25 | 22 | 30 | Φ10 | 65 | 87,5 | 63,5 | 27,5 | 44 | 11 | 10 | 14 | 3 | M65x1.5 | 75 | 88 | 58 | Φ8.5-Φ14 x9D |
2-PT1/8 | 32 | 38 | 37,5 | M12 | 65° | P7 | ø20 |
| HLCF-S-63 HLCF-D-63 |
179 | 105 | 25 | 22 | 30 | Φ10 | 69 | 98 | 74 | 32 | 48 | 11 | 10 | 14 | 3 | M80x1.5 | 90 | 108 | 70 | Φ8.5-Φ14 x9D |
2-PT1/8 | 35 | 48 | 45 | M12 | 60° | P7 | ø20 |
