CTC-P Threaded Body cylinder, Clamp Cylinder, Push-Cylinder

CTC-P Hydraulic Threaded - Body hydraulic clamp cylinder

Push type hydraulic cylinder with threaded body, screw-in cylinder
These threaded cylinders are suitable for use in all types of clamping fixtures.
The cylinders can be screwed directly into tapped holes in the fixture body up to the hexagon-section.
space saving and easy installation at fixtures
small dimensions, minimum spaces between the clamps when installed in a row
oil supply through drilled oil channels in the fixture body.
high clamping forcessingle acting with spring return
Max. Operating pressure : 350 bar (kgf/cm2)
Min. Operating pressure : 20 bar (kgf/cm2)

Note :

Cylinders must not be loaded iin retracted position.
Cylinders must not be used without workpiece
Care for protection against direct influences of aggressive cutting lubricants and coolants
supplied with leckage-proof sealing for bottom sealing of the cylinder

Ordering Indication : CTC-P022A-10

CTC-P	SERIES	CTC-P
022	Size	022, 025, 030, 036, 048, 055

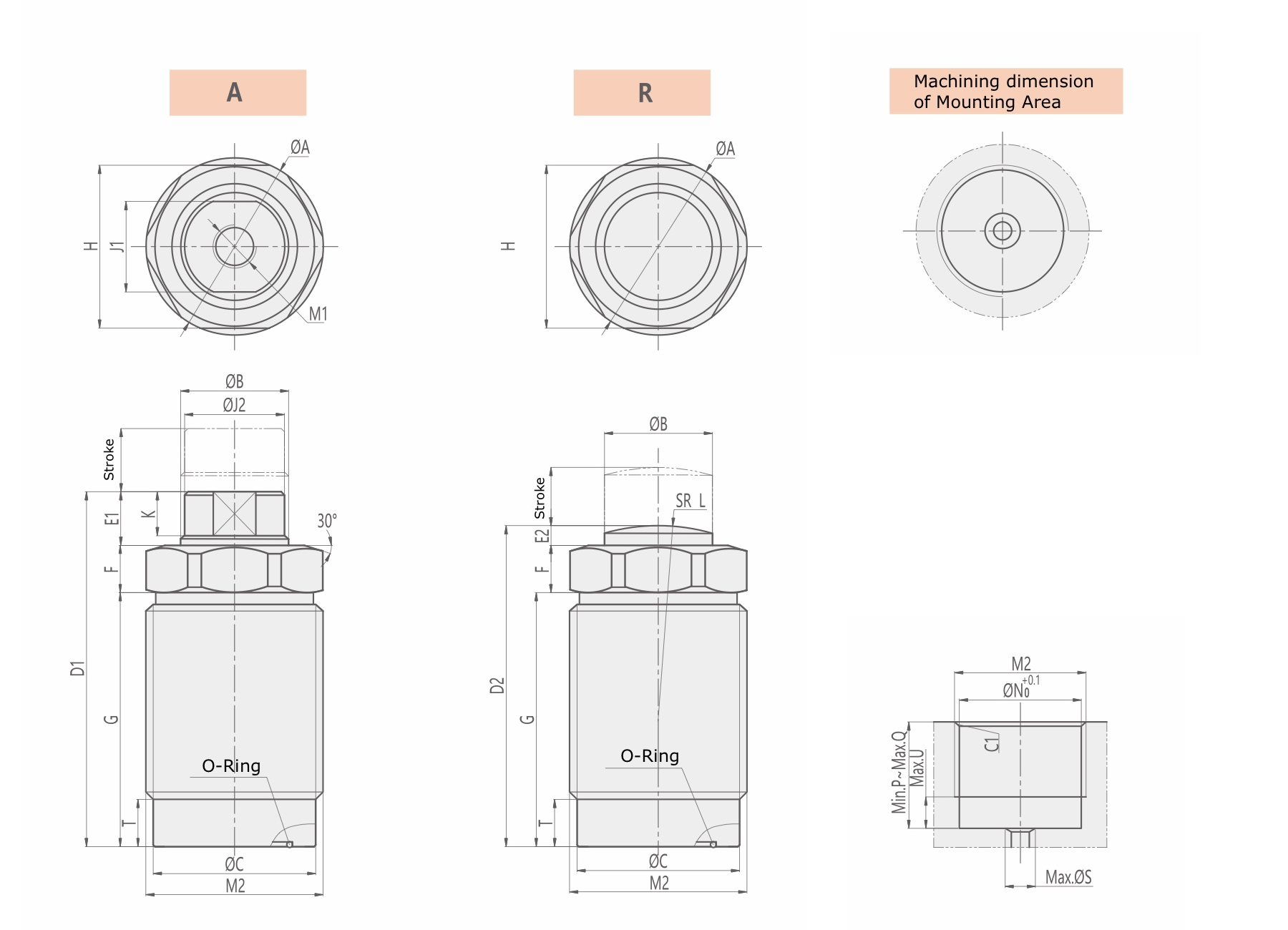

A	Piston rod type	A : round top type / spherical piston type B : threaded top type / rod with inner thread
10	Stroke	see spezification table (5mm to 32mm)

Model No.	Push force at 350 bar [kN]	Stroke [mm]				Cylinder capacity [cm³]				eff. piston area [cm²]
CTC-P022	3,97	5	10	15	-	0.6	1.1	1.7	-	1.13
CTC-P025	5,4	5	10	15	20	0.8	1.5	2.3	3.1	1.54
CTC-P030	8,97	5	10	15	20	1.3	2.5	3.8	5.1	2.55
CTC-P036	13,98	5	10	15	25	2.0	3.9	5.9	9.9	3.94
CTC-P048	28,46	10	15	20	32	8.0	12.0	16.0	20.1	8.04
CTC-P055	35,00	12	20	32	-	11.9	19.8	31.7	-	9.90
