HLKA-Series Hydraulic Link Clamp

HLKA Hydraulic Link Clamp - Hydraulic cylinder

HLKA Hydraulic Link Clamp

Hydraulic Leverage Clamp - double acting :

  • very compact series with low flange design
  • suitable especially for compact and light fixtures with high clamping forces.
  • double acting type
  • High clamping forces 2,1kN up to 31kN
  • Clamping force depends on the clamp arm length and hydraulic pressure
  • complete with clamping arm and screw
  • Use flow control valve for meter-in control.
  • Min. operating pressure : 10bar
  • Max. operating pressure : 70bar
  • Range of Temperature : -10 ~ +70°C
  • various sizes and types
  • with optional air sensing !
  • similar to HLA, Clamptek CLKA, CLU etc.

➝ CAD-files and prices on Request !

Ordering Indication : HLKA - 32 C M L
①
HLKA
 SERIES HLKA
②
32
 Body size/
Cylinder inside diameter [mm]		 036: ΦI36       040: ΦI40       048: ΦI48
055: ΦI55       065: ΦI65       075: ΦI75
090: ΦI90       105: ΦI05
③
C
 Port Type Blank: Standard Line type (with PT Thread Port)
G: Manifold type (with G Thread Plug)
C: Manifold with flow type (with G Thread Plug)
④
M
 Air sensing Blank: Standard (without sensing)
D: Double End Rod option
M: Air Sensing Manifold option
N: Air Sensing Piping Option
⑤
L
 Lever direction Blank: Standard front side
R: Right side
L: Left side

Model No.Clamping force
at 70 bar
(kN)		Clamping stroke
(mm)		Total stroke
(mm)		Oil capacity
Clamp
[cm3]		Oil capacity
Unclamp
[cm3]		eff. piston
area clamp
[cm2]		eff. piston
area unclamp
[cm2]
HLKA-036 2,07 16 18,5 7,03 5,57 3,80 3,01
HLKA-040 2,74 17,5 20,5 10,07 7,75 4,91 3,78
HLKA-048 4,52 20,5 23,5 18,89 15,28 8,04 6,50
HLKA-055 6,49 23 26 32,66 27,43 12,56 10,55
HLKA-065 10,73 26,5 29,5 57,91 48,65 19,63 16,49
HLKA-075 17,79 32 35 109,06 95,76 31,16 27,36
HLKA-090 21,35 38 41 141,37 132,55 34,48 32,33
HLKA-105 30,94 46 49 246,18 199,04 50,24 40,62
HLKA Drawing Hydraulic Link Clamp
MODELAJ2J1IBFCZKLC1C2NMQRSWG3YC3G2DD1G1αEG4øUPORT WITH
Line Type		O-Ring
HOLE
HLKA-036 78,5 49 40 36 48 23 10 20 31,4 66 12,5 6 23,5 16 7,5 4,5 15,5 30 20 11 19 14,5 5 5 37 19,6 17 19 ø10 2-PT1/8 P5
HLKA-040 87,5 54 45 40 54 29 12 22,5 34 72 14 8 26 18 9 5,5 15 30,5 22 13 21 16 6 6 40 20,2 17,5 20,5 ø12 2-PT1/8 P5
HLKA-048 99,0 61 51 48 60 32 12 25,5 40 81 16 8 30 22 9 5,5 16 34,5 26 13 24 18,5 6 6 47 18,9 21,5 23,5 ø14 2-PT1/8 P5
HLKA-055 110,5 69 60 55 65 37 16 30 47 88 20 12 33,5 24 11 6,8 13,5 35,5 30 16 28 21 6 8 55 19,3 25 29 ø16 2-PT1/8 P5
HLKA-065 127,5 81 70 65 73,5 43,5 19 35 55 106 25 17 39,5 30 11 6,8 16 39 35,5 19 37 24,5 8 10 61,5 20 26,5 32 ø20 2-PT1/4 P7
HLKA-075 151 94,5 85 75 84 47 22 42,5 63 116 32 24 45 32 14 9 17,5 48 43,5 25 40 30 10 12 72,5 21,4 30 37,5 ø22 2-PT1/4 P7
HLKA-090 180 109,5 100 90 101 61 25 50 75 136 38 30 52,5 37 17,5 11 17 52,5 52,5 28 49 36 12 15 82,5 22,4 32,5 41,5 ø28 2-PT3/8 P7
HLKA-105 209 127 120 105 115 65 32 60 88 152 45 37 60 45 20 14 23 64 64 32 64 44 15 18 100 23,1 40 51 ø35 2-PT3/8 P7

HLKA-G Technische Zeichnung Hydraulischer Hebelspanner in Standardausführung

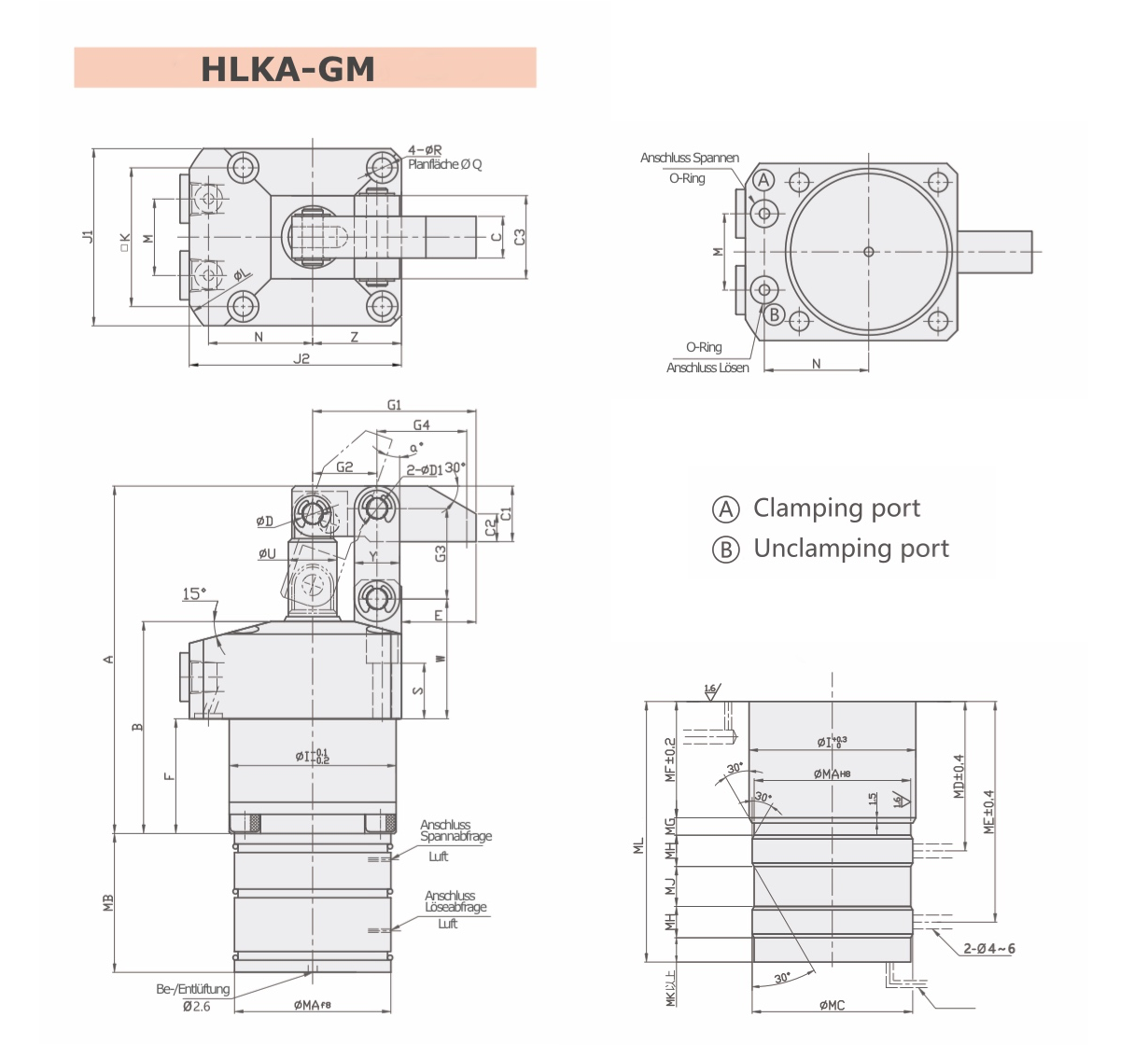

HLKA-GM Technische Zeichnung Hydraulischer Hebelspanner pneumatischer Positionsabfrage bei Tieflochbohrung

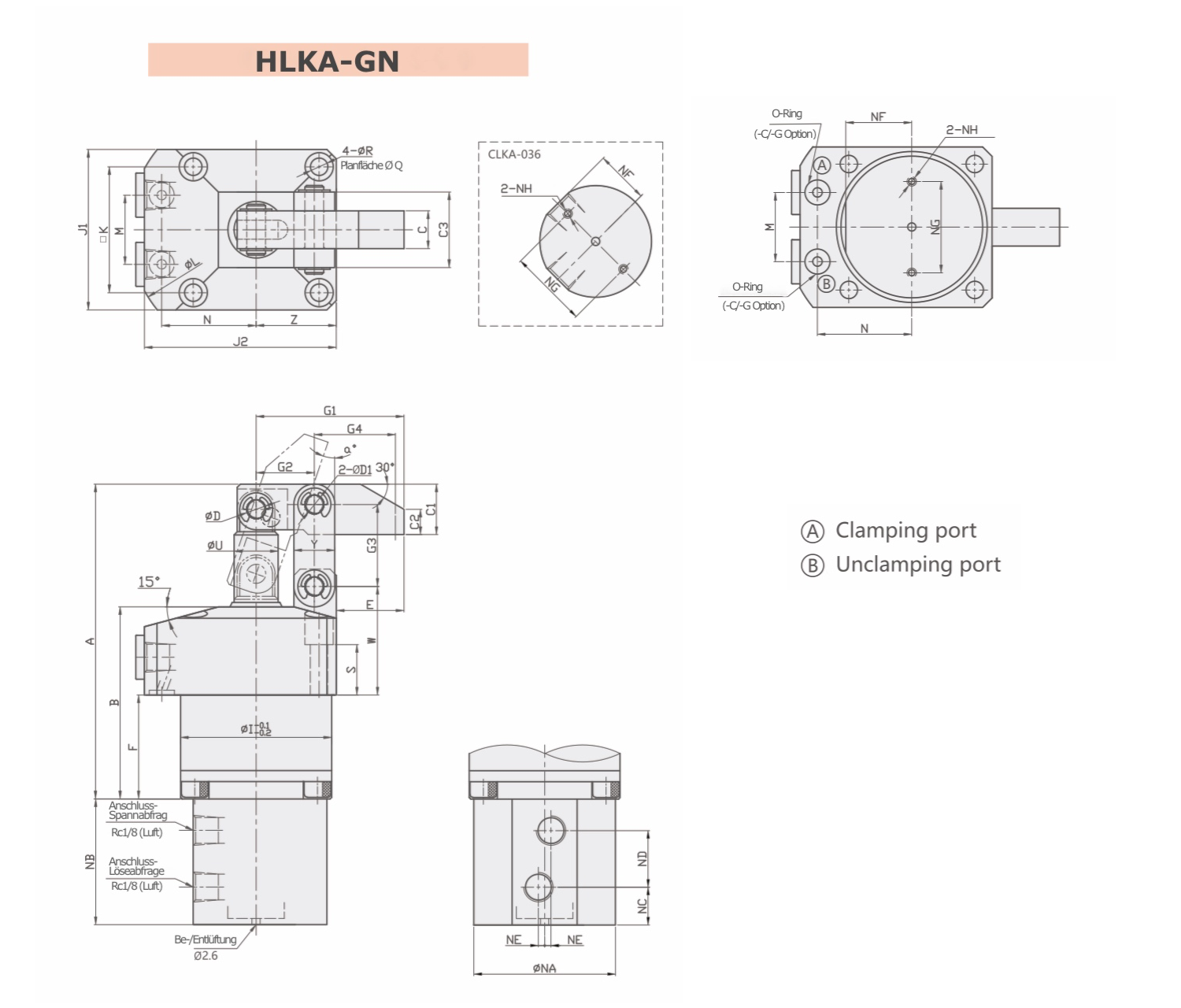

HLKA-GN Technische Zeichnung Hydraulischer Hebelspanner pneumatischer Positionsabfrage bei Verrohrung
