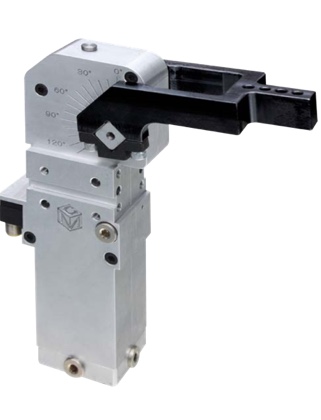

Pneumatic Power Clamp - Heavy pneumatic toggle clamp
Pneumatic toggle clamp - heavy duty type
- Modular lightweight compact design with fully enclosed mechanism
- protected against welding splashes and other similar process influences
- High holding torque
- high reliability, durability, longevity, and precision
- Low weight, aluminium body
- Wide range of clamping arm variants
- Adjustable opening angle without need for accessory parts 15°...135’ (size 40)
- Mounting areas at front, back and sides
- Toggle-action mechanism
- Manual unlocking in case of pressure drop
- Inductive sensing module with LED display
- can replace e.g. 82L3G, 82L-3E
- double acting - max. operating pressure 6 bar !
Applications
Automotive manufacturing, sheet processing Industry, Jig and general mechanical engineering.
Clamping, holding, gripping and positioning of metal sheets and other parts, mainly Jigs and handling systems. Your best choice for carefully inserting and clamping components are the clamps with a hands lever.
| Size | A | B | B1 | B2 | B3 | B4 | B5 | B6 | B7 | B8 | D | D1 | D2 | D3 | E | E1 | E2 | E3 | E4 | E5 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 32 | 11 | 74 | 31 | 22 | 105 | 42 | 42 | 60 | 34 | 51 | 7 | 6 | 6 | 6 | 20 | 20 | 30 | 10 | 10 | 5 |
| 40 | 16 | 83 | 36 | 28 | 117 | 55 | 50 | 58 | 37 | 60 | 7 | 6 | 6 | 6 | 35 | 25 | 35 | 12.5 | 12.5 | 7.5 |
| Size | F | H | H1 | H2 | K | K1 | K2 | K3 | K4 | L | L1 | L2 | L3 | L4 | L5 | M | M2 | N | N1 | N2 | R | S |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 32 | 39 | 8 | 48 | 36 | 79 | 10 | 10 | 10 | 6 | 209 | 82.5 | 30 | 36 | 61 | 20 | M5 | M5 | 17 | 3.5 | 2 | 11.5 | - |
| 40 | 26 | 8 | 47 | 48 | 90 | 10 | 10 | 10 | 7 | 235.5 | 88.5 | 34 | 40 | 40 | 22 | M6 | M6 | 13.5 | 3.5 | 4 | 16 | 13 |
