SRJ02-103-01 Rotary Union, bearingless detachable type
![SRJ02-103-01 Bearing-less Detachable Type Rotary Union-Rotary Joint](/images/DESETEC/Drehdurchfuhrungen/SRJ02-103-01_Drehdurchfuehrung_lagerlos_Rotary_Union_detachable.webp)

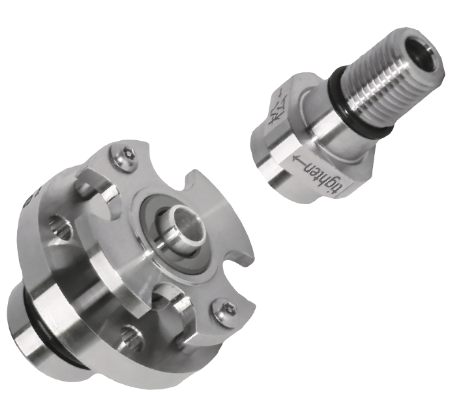

SKT® Bearing-less Type Rotary Joint :
- Bearingless Rotary Join for Machine Tools, Machining Centre, and Transfer Lines
- This bearing-less joint is a rotary seal mounted at the spindle shaft end
- for spindle-through coolant applications
- High maximum rotation of 40,000 min-1
- Available for high speed operating without media, thank to Auto off Seal.
- Silicon carbide Seal : long time endurable quality for harsh operating condition.
- Stainless Steel Rotor due to resisting property for corrosion, abrasion, heat and cold condition.
- Rotary seal screw size: M12x1.25, left hand
- SRJ 02-103-01A : Optional type for use with coolant or Air (max.15.000 rpm)
- Original GTA Rotary joints, similar to Deublin 1154 or Rix ESX20 Series etc. !
Operating Data :
- Max.Pressure : 100 bar
- Max.RPM : 40.000
- Max.Temperature : 70°C
- Max.Flow : 35 L/min
![SRJ02-103-01 Bearingless Detachable Type Rotary Union-Rotary Joint Technical Drawing](/images/DESETEC/Drehdurchfuhrungen/SRJ02-103_Zeichung_Drehdurchfuehrung_lagerlos_Rotary_Union_detachable.webp)
Model | A | B | C | D | E | F | G | H | I | J | X | Y | Z |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SRJ02-103-01 | M12x1.25LH | 20 | 7 | 13 | 6 | 21 | 25±1.5 | 39.5 | 15.9 | PCD30 | 13 | 23 | 8.2 |
SRJ02-103-02 | M16x1.5LH | 20 | 7 | 18 | 6 | 21 | 25±1.5 | 39.5 | 15.9 | PCD30 | 18 | 23 | 8.2 |
