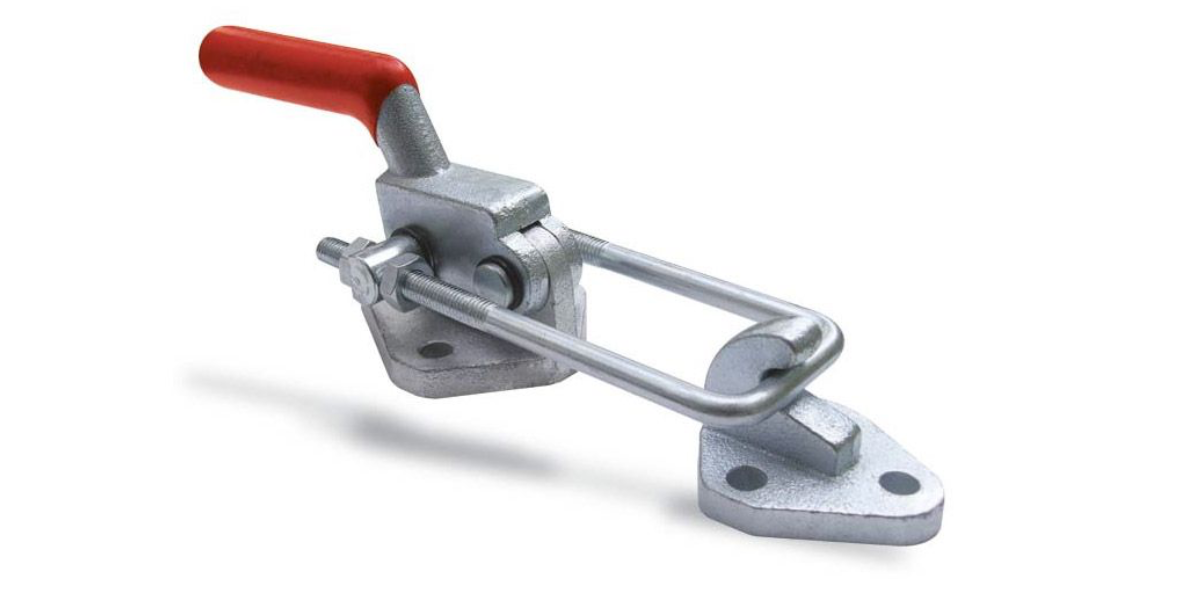

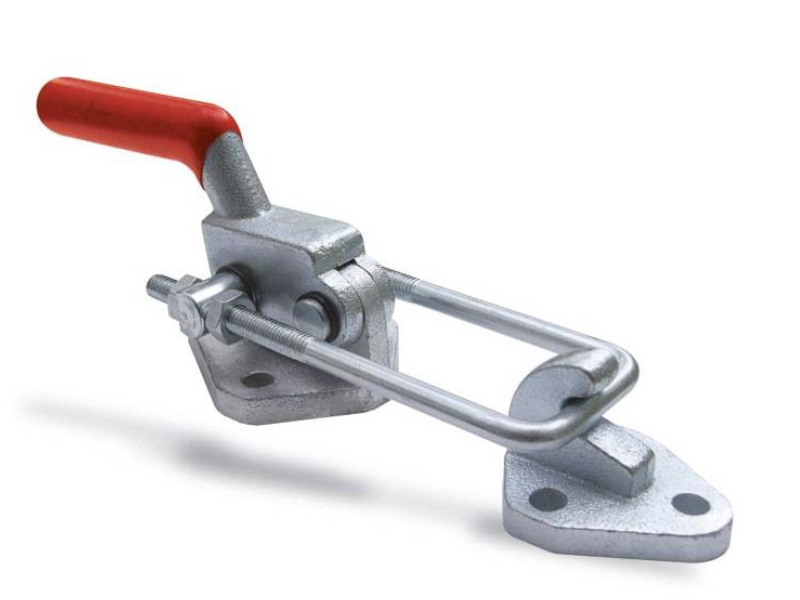

M44 Heavy hook type toggle clamp

Heavy hook type toggle clamp - high holding forces:

• Heavy duty type for high holding forces
• Body, lever arm and catch plate are made in cast steel (optional blued or black lacquered).
• U-bolt latch, bearing pins and nuts are heat-treated and zinc-plated.
• Hinge pins and hinge bushes are case-hardened, reamed and ground.
• All moving parts, joints and pins are permanent-lubricated and hardened.
• The stroke of the U-bolt latch can be adjusted within its range.
• Clamp nuts on lever arm to vary friction in movement.
• Oil-resistant high quality plastic red handle
• Different lengths of U-bolt latch are optional available
• Supplied complete with counter catch.
• Similar to 6849PH etc.
• CAD files are available for free download below!
