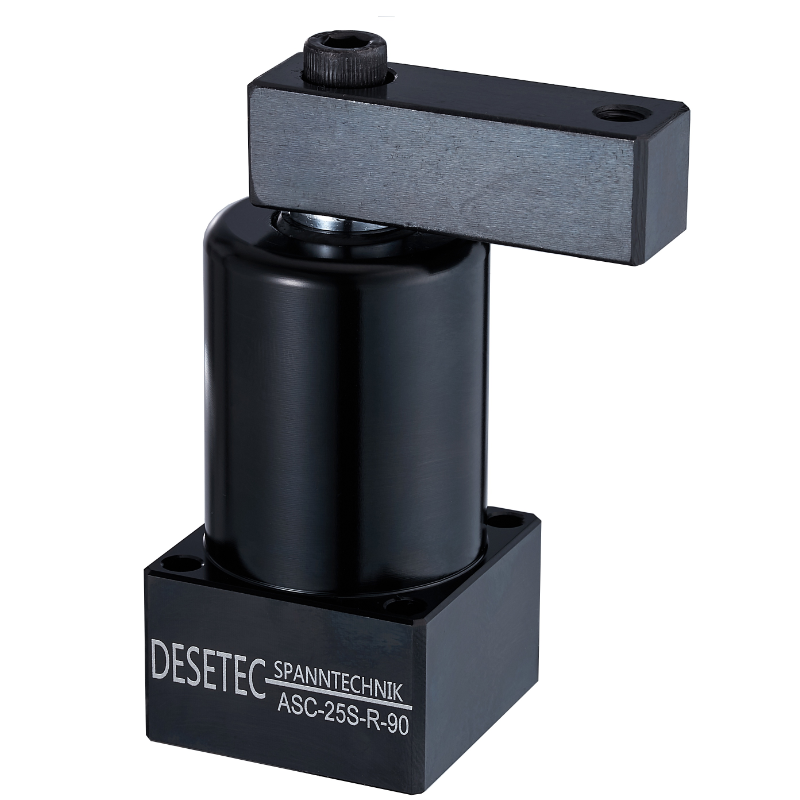

ASC Pneumatic Swing Clamp

ASC Pneumatischer Schwenkspanner

Pneumatic clamping element with swing piston :

compact series for use in tight spaces
Body material: aluminium alloy 6061
Material clamping arm and piston : heat-treatable steel C45
Holding capacity 240N up to 2000N
lightweight, robust and reliable
high durability
complete with clamping arm
optional magnetic type for position monitoring
double acting
Operating pressure : 4 to 7 bar
various mounting and piping types

Note :

Filtered and oiled compressed air must be used !
Customized modifications are possible (e. g. ASC-MS50SR-180-S1)!
CAD-files and pricees on Request !

Product Datasheet (Download)

Ordering Indication : ASC-MF 25 S Rx90-E-P

①	ASC	Serie	ASC
②	MF	Mounting and piping types	Blank : Standard Line type MF : Manifold with Flow Control MS : Magnetic type (for position monitoring with optional sensors) FA : Upper Flange type TB : Threaded body
③	25	Cylinder inside diameter	Φ25, Φ32, Φ40, Φ50, Φ63 (mm)
④	S	Clamping arm type	S : Single side arm D : Double side arm
⑤	R	Rotating direction	R :Turn right (clockwise direction) L :Turn left (anti-clockwise direction) N : 0° - No swing
⑥	90	Rotating angle	Standard angle : 90° (±2°) optional angles : 45° ±(2°), 60° (±2°) Special angles on request.
⑦	E	Stroke extention	optional with extended stroke (see dimension tables and specification)
⑧	P	Precision position	Locating pin, to improve the repeat precision of rotation angle (optional)

Model-No.	Stroke type	Clamping force at 7 bar [kN]	Swing stroke [mm]	Clamping stroke [mm]	Total stroke [mm]	Piston-Ø [mm]	Prices from [EUR]
ASC-25	Standard	0,24	9	13	22	25	149,00
ASC-32	Standard	0,42	11	15	26	32	159,00
ASC-40	Standard	0,74	11	15	26	40	179,00
ASC-50	Standard	1,16	13	17	30	50	229,00
ASC-63	Standard	1,96	13	17	30	63	249,00
ASC-32-E	Extented	0,42	11	30	41	32	189,00
ASC-40-E	Extented	0,74	11	30	41	40	209,00
ASC-50-E	Extented	1,16	13	34	47	50	269,00
ASC-63-E	Extented	1,96	13	34	47	63	289,00

ASC Pneumatic Swing Clamp all types

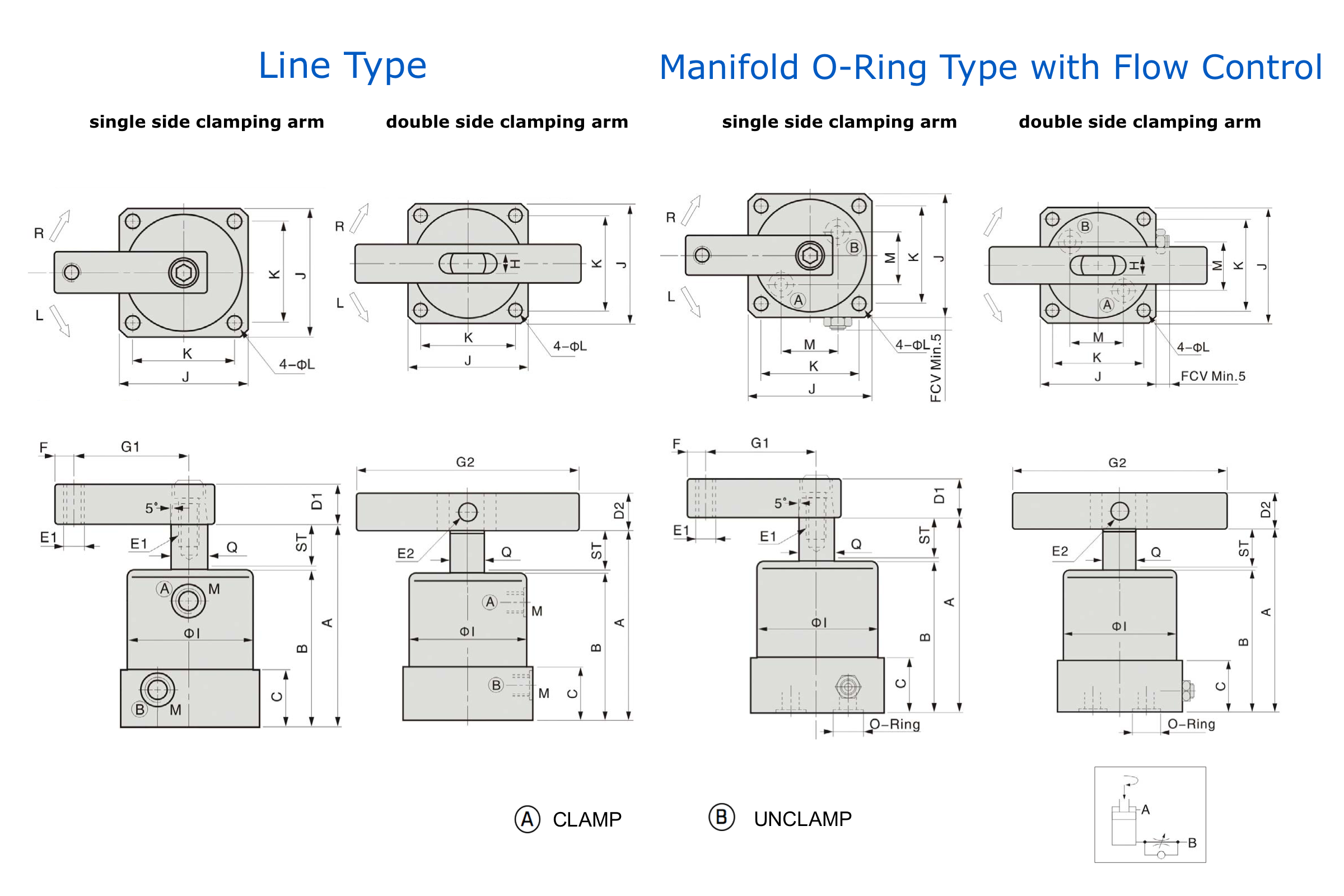

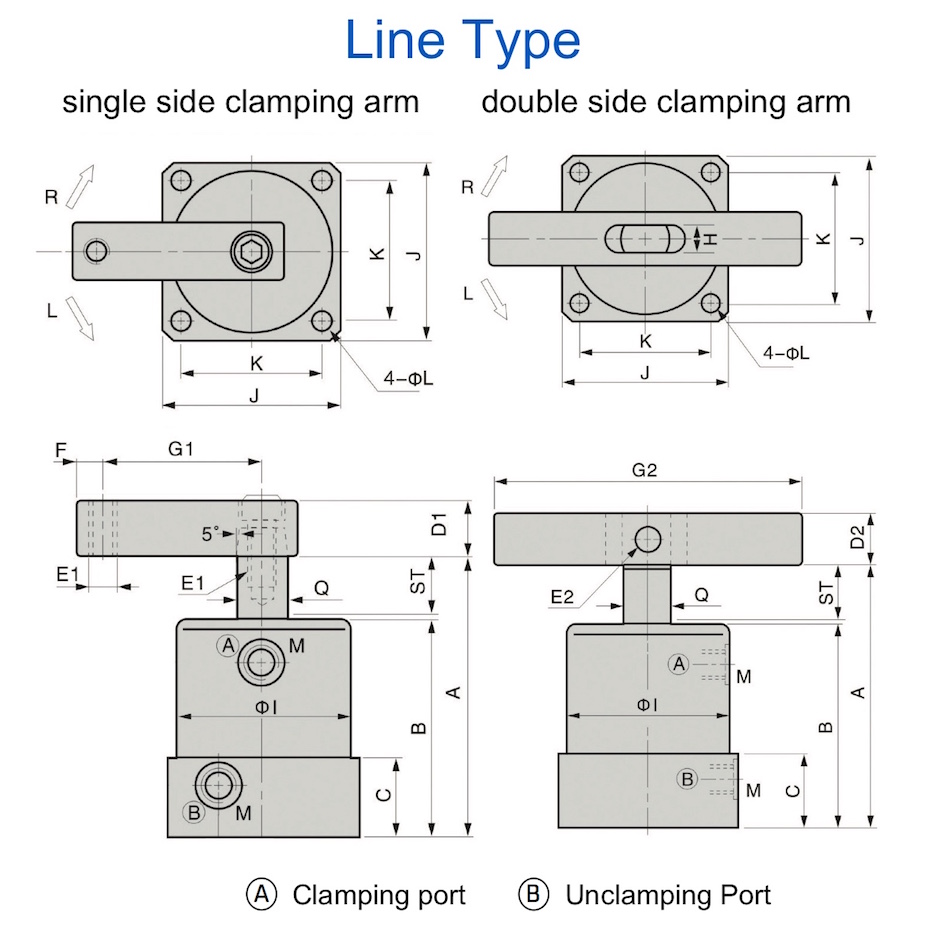

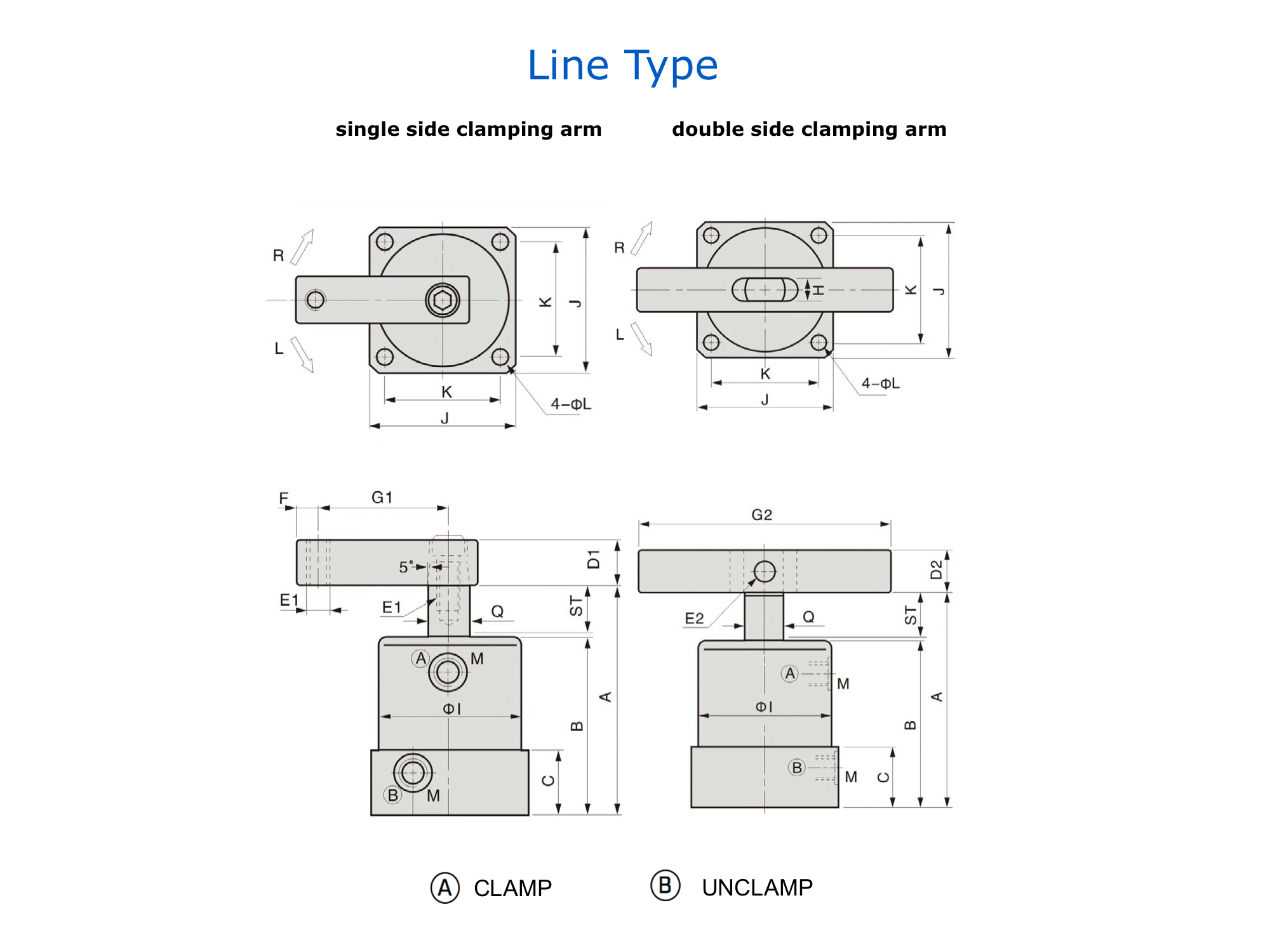

ASC Technical Drawing Pneumatic Swing Clamp Line type

MODEL	Stroke = Swing+Clamp	A unclamped	B	C	D1	D2	E1	E2	F	G1	G2	H	ΦI	J	K	L	M	Q
ASC-25	22= 9+13	89	65	23	16	-	M6x1.0	-	6	35	-	-	Φ35	38	30	Φ4.6	M5x0.8	Φ14
ASC-32	26=11+15	108	78	28	19	19	M8x1.25	Φ8	8	50	140	9	Φ46	50	40	Φ5.6	PT1/8	Φ16
ASC-40	26=11+15	108	78	28	19	19	M8x1.25	Φ8	8	55	140	9	Φ55	60	48	Φ6.8	PT1/8	Φ16
ASC-50	30=13+17	124	90	31	25	22	M10x1.5	Φ8	10	60	160	10	Φ65	70	57	Φ6.8	PT1/8	Φ20
ASC-63	30=13+17	124	90	31	25	22	M10x1.5	Φ8	10	70	160	10	Φ78	83	67	Φ9	PT1/8	Φ20
⬇︎ ⬇︎ with optional stroke extention (E) ⬇︎ ⬇︎
ASC-32-E	41=11+30	138	93	28	19	19	M8x1.25	Φ8	8	50	140	9	Φ46	50	40	Φ5.6	PT1/8	Φ16
ASC-40-E	41=11+30	138	93	28	19	19	M8x1.25	Φ8	8	55	140	9	Φ55	60	48	Φ6.8	PT1/8	Φ16
ASC-50-E	47=13+34	158	107	31	25	22	M10x1.5	Φ8	10	60	160	10	Φ65	70	57	Φ6.8	PT1/8	Φ20
ASC-63-E	47=13+34	158	107	31	25	22	M10x1.5	Φ8	10	70	160	10	Φ78	83	67	Φ9	PT1/8	Φ20

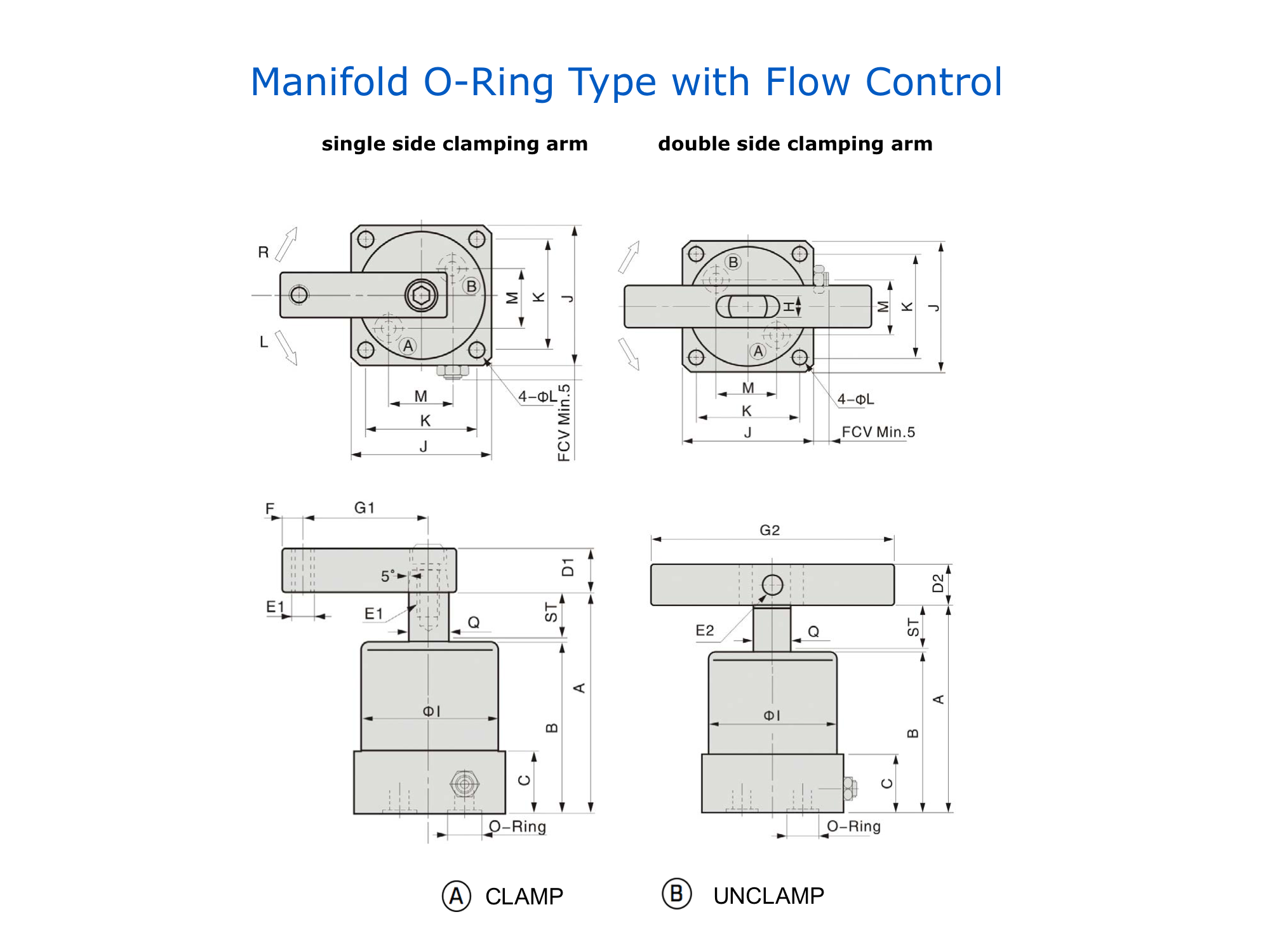

ASC Technical Drawing Swing clamp Manifold type with flow control

MODEL	Stroke = Swing+Clamp	A geöffnet	B	C	D1	D2	E1	E2	F	G1	G2	H	ΦI	J	K	L	M	O-Ring	Q
ASC-MF32	26=11+15	108	78	22	19	19	M8x1.25	Φ8	8	50	140	9	Φ46	50	40	Φ5.6	19	P7	Φ16
ASC-MF40	26=11+15	108	78	22	19	19	M8x1.25	Φ8	8	55	140	9	Φ55	60	48	Φ6.8	23	P7	Φ16
ASC-MF50	30=13+17	124	90	25	25	22	M10x1.5	Φ8	10	60	160	10	Φ65	70	57	Φ6.8	28	P9	Φ20
ASC-MF63	30=13+17	124	90	25	25	22	M10x1.5	Φ8	10	70	160	10	Φ78	83	67	Φ9	32	P9	Φ20

ASC Technical Drawing Pneumatic Swing Clamp Magnetic type with position control

Modell-No.	Total stroke = Swing+Clamp	A Unclamp	B	C	D1	D2	E1	E2	F	G1	G2	H	ΦI	J	K	L	M	Q	Weight (S/D) [kg]
ASC-MS25	22= 9+13	94	70	23	16	-	M6x1.0	-	6	35	-	-	Φ35	38	30	Φ4.6	M5x0.8	Φ14	0,4
ASC-MS32	26=11+15	113	83	28	19	19	M8x1.25	Φ8	8	50	140	9	Φ46	50	40	Φ5.6	PT1/8	Φ16	0,7/0,9
ASC-MS40	26=11+15	113	83	28	19	19	M8x1.25	Φ8	8	55	140	9	Φ55	60	48	Φ6.8	PT1/8	Φ16	0,9/1,1
ASC-MS50	30=13+17	129	95	31	25	22	M10x1.5	Φ8	10	60	160	10	Φ65	70	57	Φ6.8	PT1/8	Φ20	1,6/1,8
ASC-MS63	30=13+17	129	95	31	25	22	M10x1.5	Φ8	10	70	160	10	Φ78	83	67	Φ9	PT1/8	Φ20	2,3/2,5

LYD-31 Dimension Sensors ASC Series

LYD-31 Groove Dimension Sensors ASC Series

LYD 31 Specification ASC Series

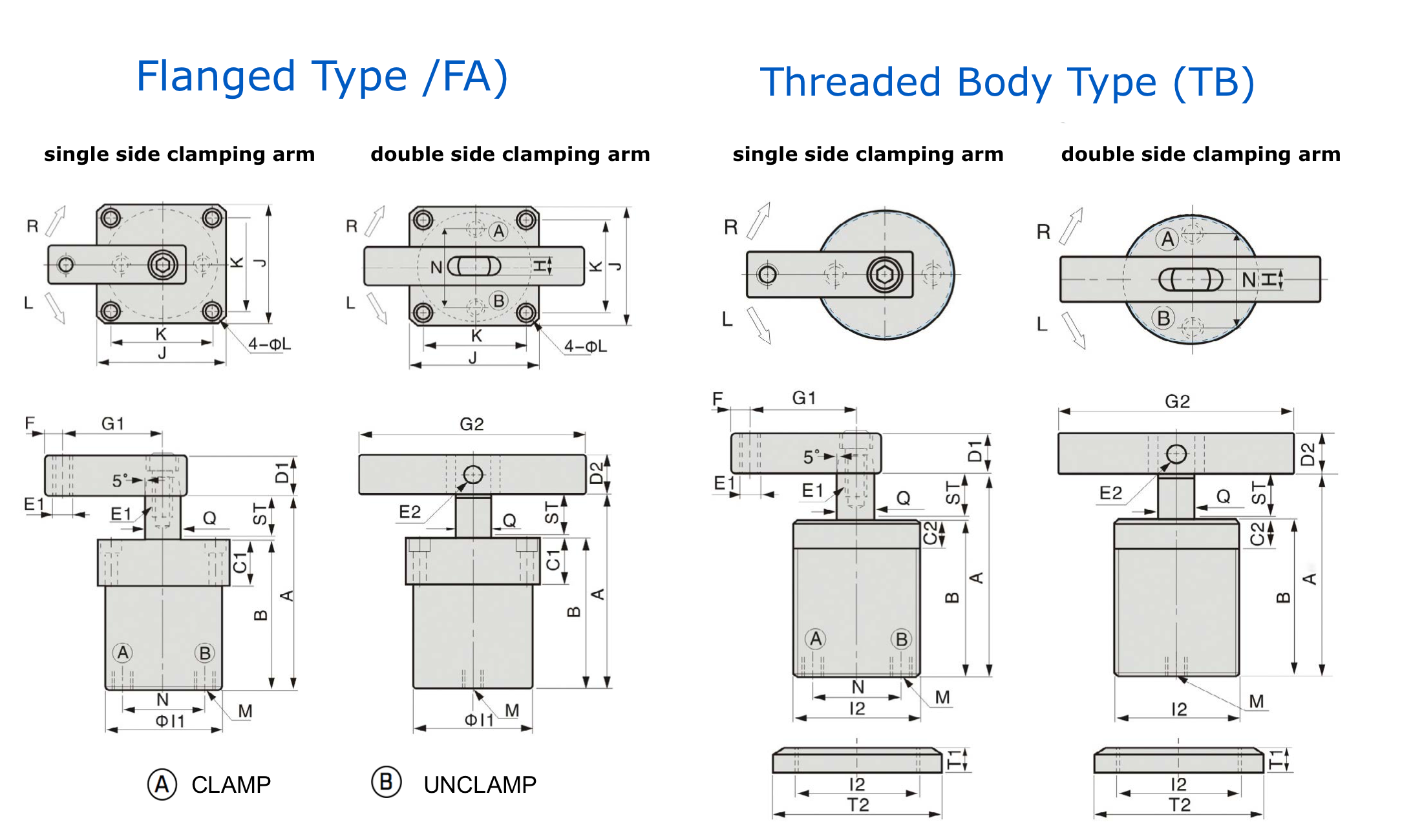

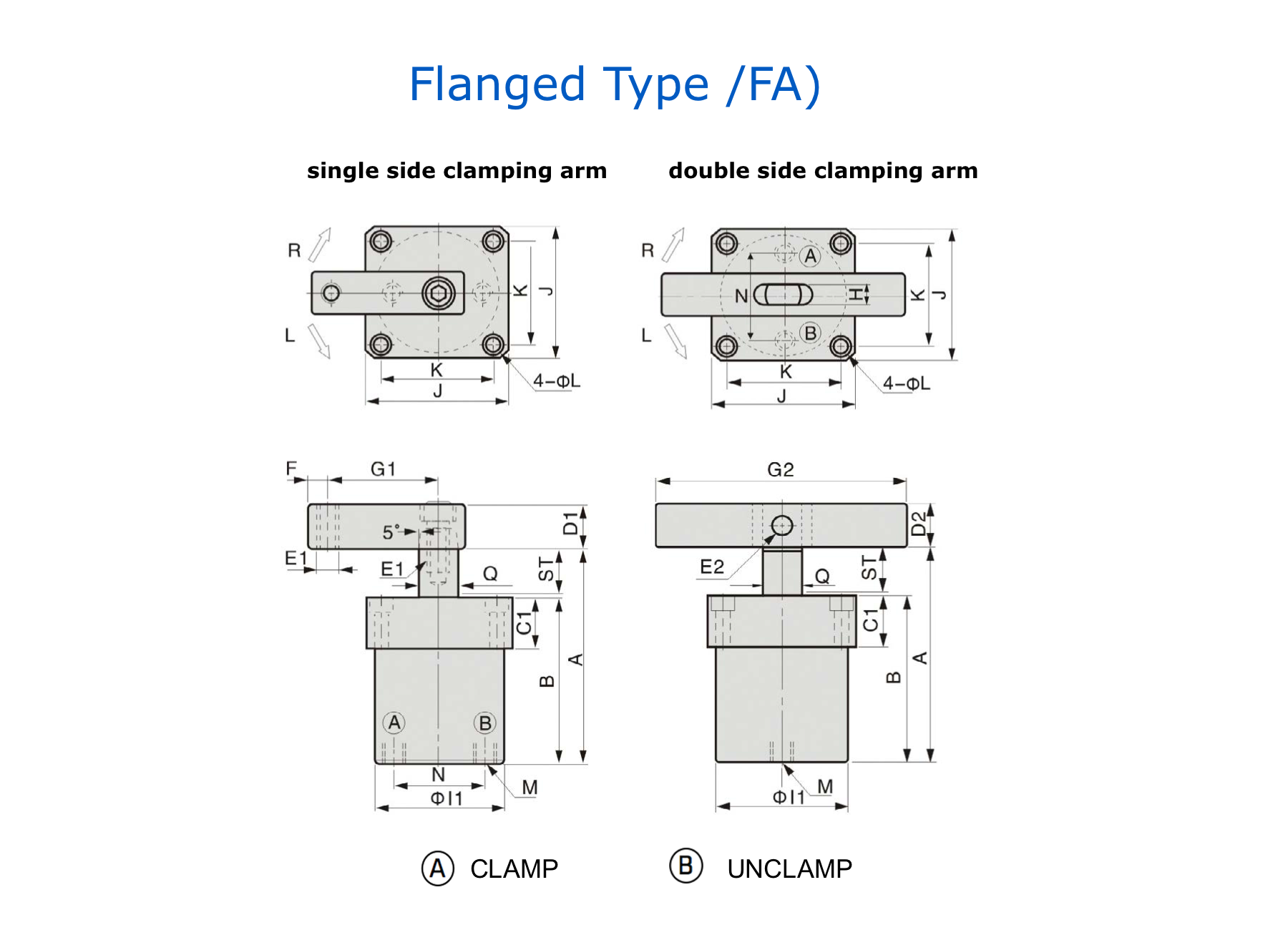

ASC Technical Drawing pneumatic swing clamp flanged type

Modell-No.	Total stroke = Swing+Clamp	A Unclamp	B	C1	C2	D1	D2	E1	E2	F	G1	G2	H	ΦI1	øI2	J	K	L	M	N	Q
ASC-FA32	26=11+15	108	78	22	12	19	19	M8x1.25	Φ8	8	50	140	9	Φ46	M50x1.5	50	40	Φ5.-ø9x5.5D	PT1/8	32	Φ16
ASC-FA40	26=11+15	108	78	22	12	19	19	M8x1.25	Φ8	8	55	140	9	Φ55	M55x1.5	60	48	Φ6.8-10.5x6.5D	PT/1/8	40	Φ16
ASC-FA50	30=13+17	124	90	25	15	25	22	M10x1.5	Φ8	10	60	160	10	Φ65	M65x1.5	70	57	Φ6.8-10.5x6.5D	PT1/8	50	Φ20
ASC-FA63	30=13+17	124	90	25	-	25	22	M10x1.5	Φ8	10	70	160	10	ø78	-	83	67	9ø-ø14x9D	PT1/8	63	Φ20

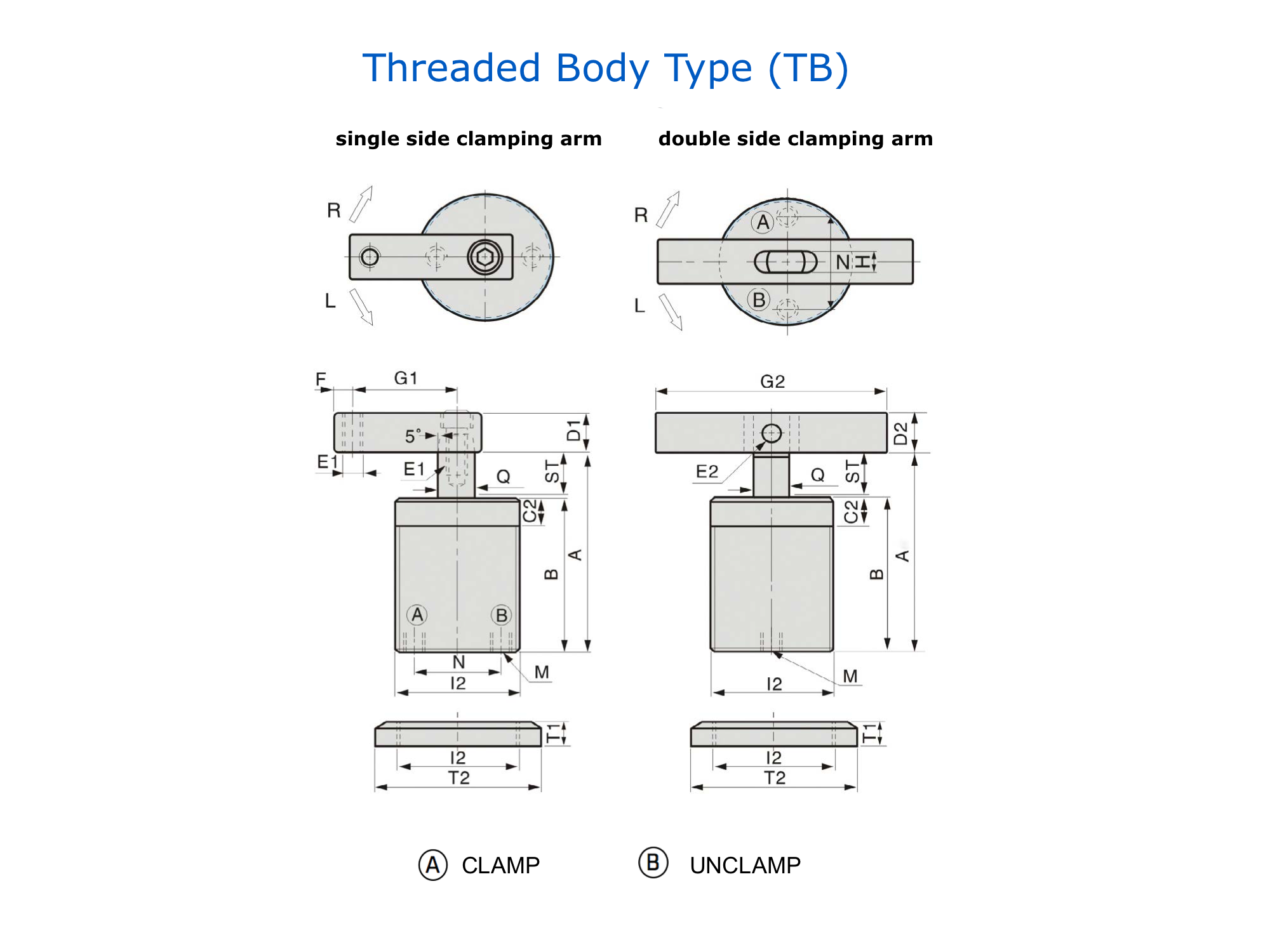

ASC Technical Drawing pneumatic swing clamp threaded type

Modell-No.	Total stroke = Swing+Clamp	A Unclamp	B	C1	C2	D1	D2	E1	E2	F	G1	G2	H	ΦI1	øI2	J	K	L	M	N	T1 (2pcs)	T2	Q
ASC-TB32	26=11+15	108	78	22	12	19	19	M8x1.25	Φ8	8	50	140	9	Φ46	M50x1.5	50	40	Φ5.-ø9x5.5D	PT1/8	32	11	ø70	Φ16
ASC-TB40	26=11+15	108	78	22	12	19	19	M8x1.25	Φ8	8	55	140	9	Φ55	M55x1.5	60	48	Φ6.8-10.5x6.5D	PT/1/8	40	11	ø75	Φ16
ASC-TB50	30=13+17	124	90	25	15	25	22	M10x1.5	Φ8	10	60	160	10	Φ65	M65x1.5	70	57	Φ6.8-10.5x6.5D	PT1/8	50	12	ø85	Φ20
ASC-TB63	30=13+17	124	90	25	-	25	22	M10x1.5	Φ8	10	70	160	10	ø78	M80x1.5	83	67	9ø-ø14x9D	PT1/8	63	12	Ø100	Ø20
