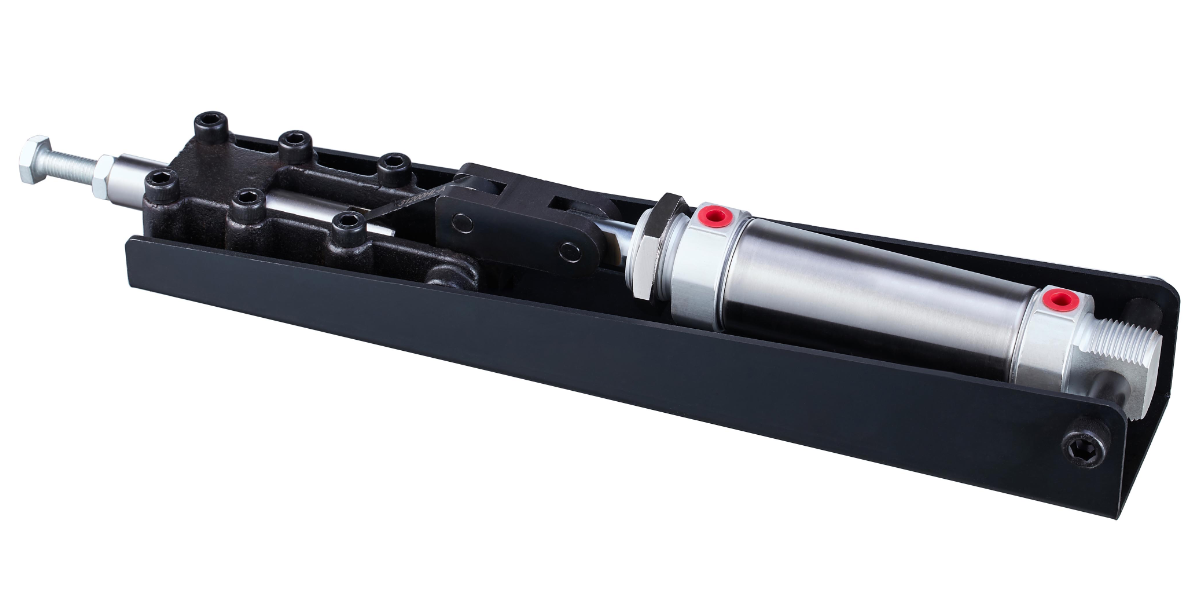

DST-31200-HL-A Pneumatic push-pull toggle clamp 12000N
Pneumatic push-pull toggle clamp, heavy duty type :
- Straight Line Action Clamps
- double acting pneumatic cylinder, ready to connect
- max. stroke 32mm
- Pneumatic version of manual toggle clamp DST-31200-M
- Lever parts and rod : galvanic, zinc-plated high quality steel
- supplied with magnetic piston for end position monitoring/sensoring
- optional Proximity sensors available
- similar to e.g. K0093.1200, CH-31200HL-A etc.
- Prices on Request !
| Modell-Nr. | DST-31200-HL-A |
|---|---|
| Holding Capacity | 12000 N |
| Weight | 3900 g |
| Plunger Stroke | 32 mm |
| Cylinder Bore | 40 mm |
| Cylinder Area | 12,56 cm2 |
| max. cylinder air pressure | 10 bar |
| Port Size | G 1/8 |
| Price | on request |
