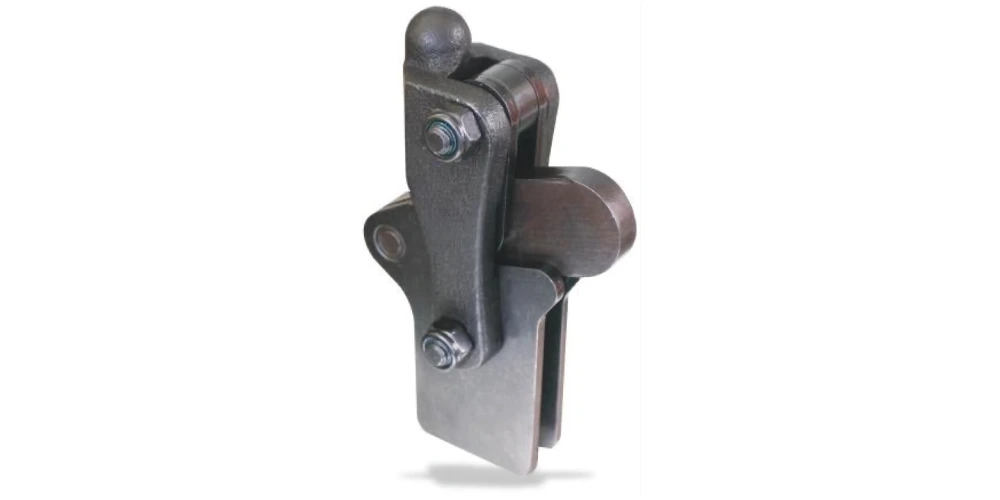

M32 Modular clamp with vertical foot
M32 Modular clamp with vertical foot
- Heavy duty type with vertical foot, weldable version
- Material body : quality steel, burnished
- Material Lever arm : cast steel, burnished
- Rivets of stainless steel
- Hinge pins and hinge bushes are case-hardened, reamed and ground
- All moving parts, joints and pins are permanent-lubricated and hardened
- Clamp nuts on lever arm to vary friction in movement.
Note :
- Supplement these base modular toggle clamps with your own clamping arms, handles etc. to meet the requirements of your specific application.
Note :
- CAD-files on request !
| Size | F1 ⇧ (kN) |  |  |  | Price (EUR) | Order- No. |
|---|---|---|---|---|---|---|
| 2 | 2,5 | 90 | 48 | 245 | o.R. | M32-2 |
| 4 | 7,0 | 112 | 82 | 950 | 74,00 | M32-4 |
| 6 | 11,0 | 182 | 1056 | 1640 | 89,00 | M32-6 |
