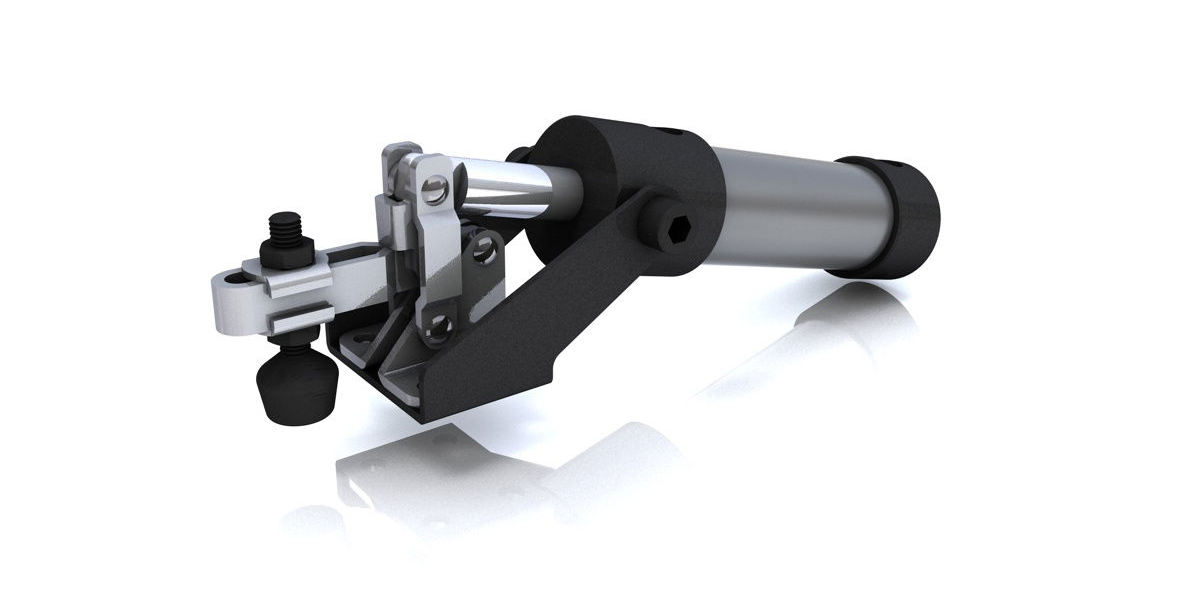

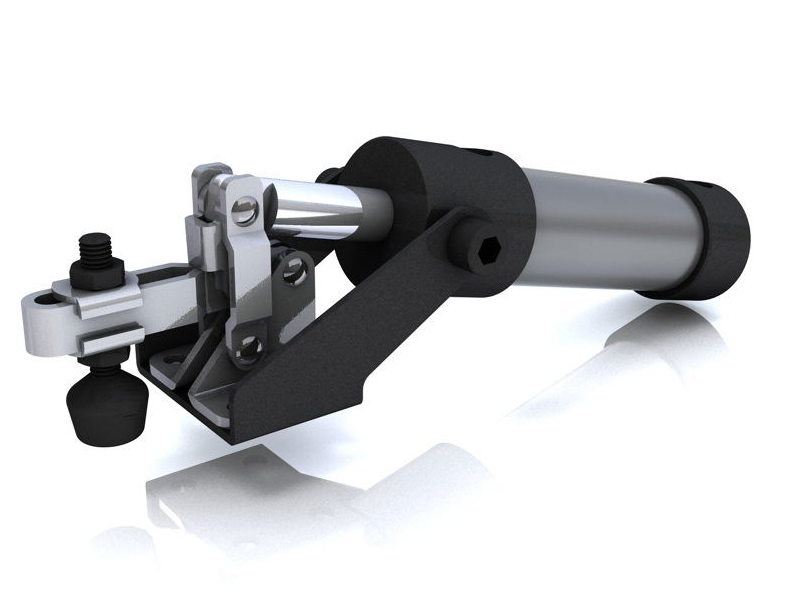

Horizontal Pneumatic toggle clamp :
- double acting, horizontal attached pneumatic cylinder
- Pneumatic version of manual toggle clamp DST-101-A
- Lever parts and clamping spindle : galvanic, zinc-plated high quality steel
- optional magnetic piston for end position monitoring/sensoring
- optional Proximity sensors available
- optional metal clamp for mounting proximitiy/magnetic sensors
- e.g. suitable for 812, etc.
- CAD-files and prices on Request!
Product Datasheet (Download)
| Modell-Nr. | DST-10101-A |
|---|
| Clamp arm type |
U-Bar |
| Holding capacity |
500N |
| Weight |
280g |
| Cylinder Bore |
20 mm |
| Cylinder Area |
3,14 cm2 |
| Bar Opens |
82° |
| max. cylinder air pressure |
10 bar |
| Port Size |
G 1/8 |
| Price |
on request |
