PSP-Series Pneumatic Swing Clamp

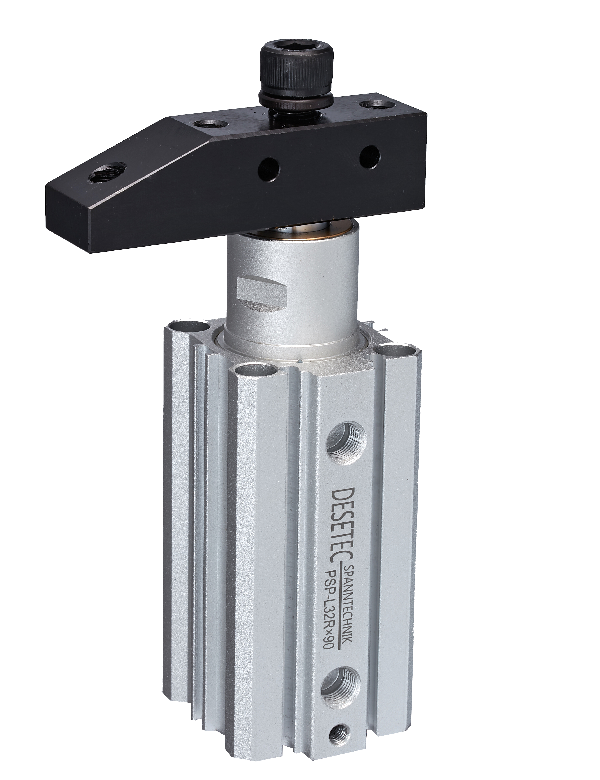

PSP Pneumatische Schwenkspanner Profilversion

Product features :

compact series for use in tight spaces
lightweight, robust and reliable
high durability
Version 1 : Standard rod length
Version 2 : Extended rod length
Body material: aluminium alloy
Holding capacity 0,23kN to 1,155kN
supplied with Magnetic piston for end position monitoring with optional sensors
complete with clamping arm
double acting
Range of temperature : -10° ~ +60°C
Operating pressure : 4 to 7 bar

Note :

Filtered and oiled compressed air must be used !
Customized modifications are possible !
Temporary special prices !

Product Datasheet (Download)

Ordering Indication : PSP-S40-R90-S2-P

①	PSP	SERIES	PSP
②	S	Stroke type	S : Standard-Stroke L : Long Stroke
③	40	Size/Cylinder inside diameter	ø25, ø32, ø40, ø50
④	R	Rotating direction	R : Right turn (clockwise direction) L : Left turn (counter-clockwise direction)
⑤	90	Rotating angle	Standard : 90° (±2°) optional : 0°, 45° (±2°), 60° (±2°) Special angles on request.
⑥	S2	Sensor switch	S1 : 1 Sensor S2 : 2 Sensors
⑦	P	Precision position	Locating pin, to improve the repeat precision of rotating angle (optional)

Model No.	Clamping Force at 7 bar [KN]	Swing Stroke [mm]	Clamping Stroke [mm]	TOTAL STROKE [mm]	Cylinder-Ø [mm\|	CAD Download	Prices from EUR/pcs.</th
PSP-S-25	0,24	9,5	10	19,5	25		159,00
PSP-L-25	0,24	9,5	20	29,5	25		165,00
PSP-S-32	0,42	15	10	25	32		169,00
PSP-L-32	0,42	15	20	35	32		175,00
PSP-S-40	0,74	15	10	25	40		185,00
PSP-L-40	0,74	15	20	35	40		195,00
PSP-S-50	1,16	19	20	39	50		215,00
PSP-L-50	1,16	19	50	69	50		245,00

PSP Technical Drawing Pneumatic Swing Clamp

MODEL	Stroke:Swing+ Clamping	A Unclamp	B	C	D1	E1	E2	F	G1	H	J1	J2	K	L	M	N1	N2	Q	Q1	Q2	T
PSP-S-25	19.5=9.5+10	109	73	3	16	M6	M8	7	32	9	40	42	28	Ø5.5-Ø9x9	M5	16,5	14	Ø14	Ø26	Ø25	11
PSP-L-25	29.5=9.5+20	129	83	3	16	M6	M8	7	32	9	40	42	28	Ø5.5-Ø9x9	M5	16,5	14	Ø14	Ø26	Ø25	11
PSP-S-32	25=15+10	134	80	3	22	M8	M10	10	45	23,5	45	49,5	34	Ø5.5-Ø9x9	PT1/8	16,5	16	Ø16	Ø30	Ø29	14,8
PSP-L-32	35=15+20	154	90	3	22	M8	M10	10	45	23,5	45	49,5	34	Ø5.5-Ø9x9D	PT1/8	16,5	16	Ø16	Ø30	Ø29	14,8
PSP-S-40	25=15+10	134,5	80	3	22	M8	M10	10	45	24,5	52	57	40	Ø5.5-Ø9x12D	PT1/8	19	16	Ø16	Ø30	Ø29	14,8
PSP-L-40	35=15+20	154,5	90	3	22	M8	M10	10	45	24,5	52	57	40	Ø5.5-Ø9x12D	PT1/8	19	16	Ø16	Ø30	Ø29	14,8
PSP-S-50	39=19+20	186,5	101,5	3,5	25	M10	M12	10	65	39	64	71	50	Ø6.6-Ø11*13D	PT1/4	24	17	Ø20	Ø30	Ø36	20
PSP-L-50	69=19+50	246,5	131,5	3,5	25	M10	M12	10	65	39	64	71	50	Ø6.6-Ø11x13D	PT1/4	24	17	Ø20	Ø30	Ø36	20

DFSH Dimension Sensors PSP Series
