DST-40323 Latch type toggle clamp 1630N

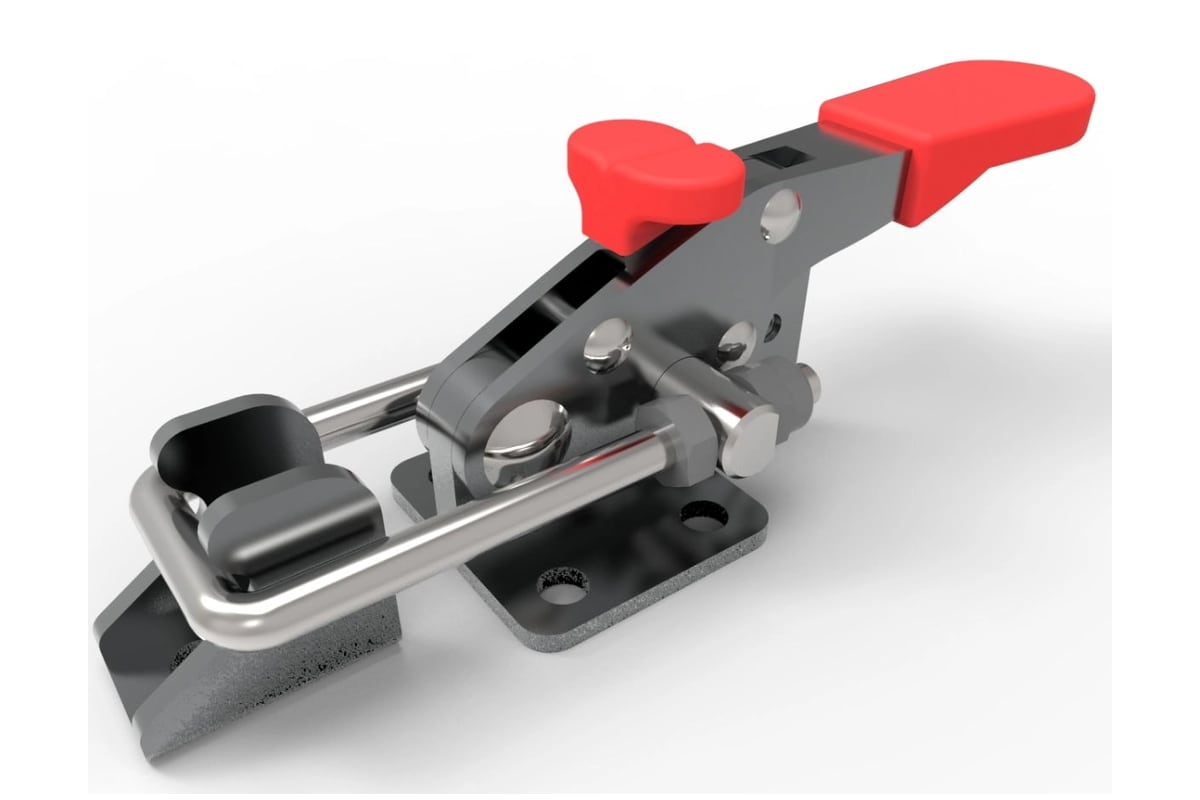

DST-40323 Latch type toggle clamp with horizontal U-hook 1630N

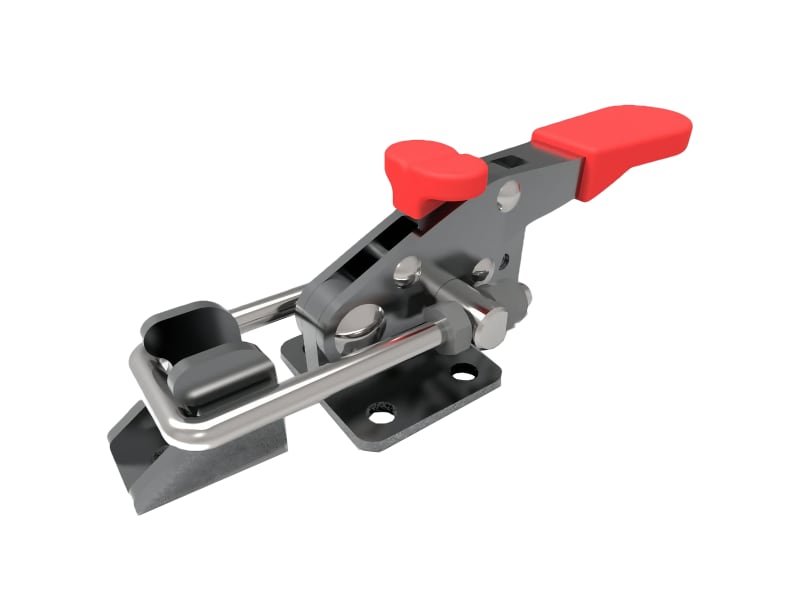

DST-40323 Latch type toggle clamp, horizontal U-hook 1630N GH-40323-R Horizontal Latch type Toggle Clamp with safety lock

Horizontal Latch type toggle Clamp with U-hook :

  • Ideally suited for applications on mould box lids, quick release covers, hatches and doors
  • Pull action latch type clamp, suitable for industrial applications
  • Horizontal mounting base with horizontal U-hook
  • threaded, easy adjustable U-hook within its range
  • supplied complete with U-hook and latch plate
  • Optional U-hook lengths are available
  • Material: galvanic, zinc-plated high quality steel
  • Hand grips designed for high user comfort
  • available also in stainless steel (DST-40323-SS)
  • available also with safety lock (DST-40323-R)
  • Holding capacity : 1630N
Note :
  • e.g. suitable for 323-M, 323-R, GN 851-160-T2, CH-40323, GH-40323 etc...
  • Prices and CAD-file on Request !
Product Datasheet (Download)
Model-No.DST-40323DST-40323-RGH-40323-R
Holding Capacity (N) 1630 N 1630 N 1630 N
Safety Lock No Yes Yes
Weight (g) 70 g 90 g 90 g
Price from (EUR) 11,50€/pcs. a. R. a. R.
CAD

DST-40323 Technical Drawing in mm

DST-40323 Latch type toggle clamp, horizontal U-hook 1630N

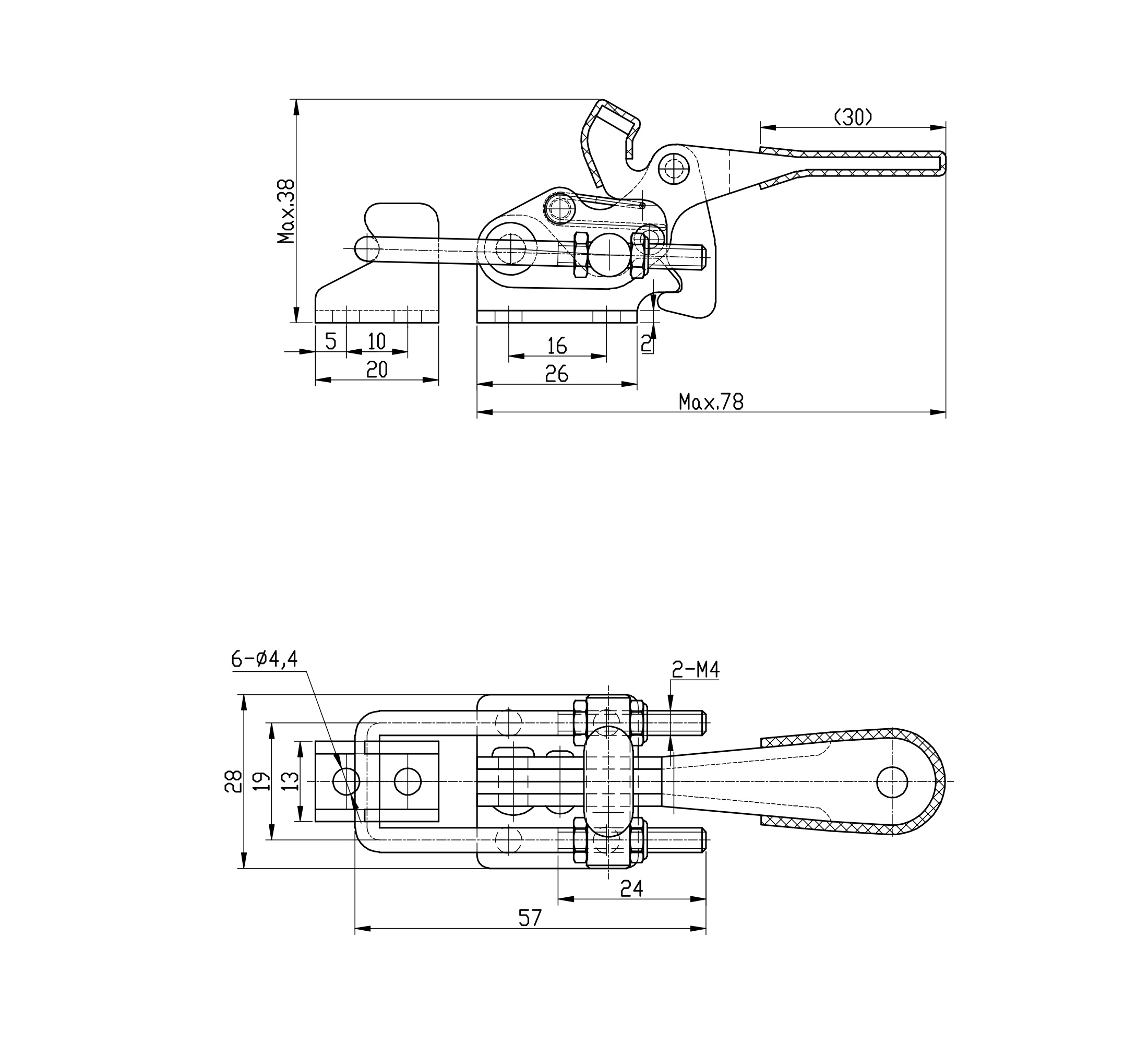

DST-40323-R Technical Drawing in mm

DST-40323-R Latch type toggle clamp, horizontal U-hook 1630N

GH-40323-R Technical Drawing in mm

GH-40323-R Horizontal Latch type Toggle Clamp with safety lock

DST-40323 Latch type toggle clamp – CAD-Data & Downloads

CAD-Data (STEP)

Product Datasheet
