Push-Pull type toggle clamps, threaded body

Push-Pull type toggle clamps, threaded body, without mounting bracket
Product Feature :
  • Holding Capacity 910N up to 3180N
  • nose mounted threaded body for through-hole mounting, direct mounting in fixtures or vertical plates
  • optional mounting bracket available
  • Toggle locks in extended and retracted position
  • can be used as push but also pull type clamp
  • Material: galvanic, zinc-plated high quality steel
  • also available in stainless steel
Note :
  • similar to DST 602, 604, 624, 602-SS, 604-SS, 624-SS usw...
  • stainless steel types are suitable for food and pharmaceutical industry
  • CAD-files and prices on Request !
Product Datasheet (Download)

Push-Pull type toggle clamps, threaded body, without mounting bracket
Art.-Nr.DST
Reference
Force F
[N]
Hub
[mm]
α1
l1
l2
b1
d1h1
l3
d2MaterialGewicht
[g]
TDCADPrices from
EUR/pcs.
36202-M 602 910 20.0 180° 21.0 64.2 24 M16 x 1.5 75 12.7 M6x1.0x25 Steel 113 15,80
36202-MSS 602-SS 910 20.0 180° 21.0 64.2 24 M16 x 1.5 75 12.7 M6x1.0x25 Stainless steel 113 37,80
36204-M 604 1360 39.0 180° 39.7 115 31 M20 x 1.5 98 15.9 M8x1.25x35 Steel 270 18,50
36204-MSS 604-SS 1360 39.0 180° 39.7 115 31 M20 x 1.5 98 15.9 M8x1.25x35 Stainless steel 270 39,80
36224-M 624 3180 65.5 180° 70.3 171 39 M27 x 2.0 137 22.3 M10x1.5x40 Steel 770 29,90
36224-MSS 624-SS 3180 65.5 180° 70.3 171 39 M27 x 2.0 137 22.3 M10x1.5x40 Stainless steel 770 75,00

similar to DST 602106-M, 604106-M und 624106-M

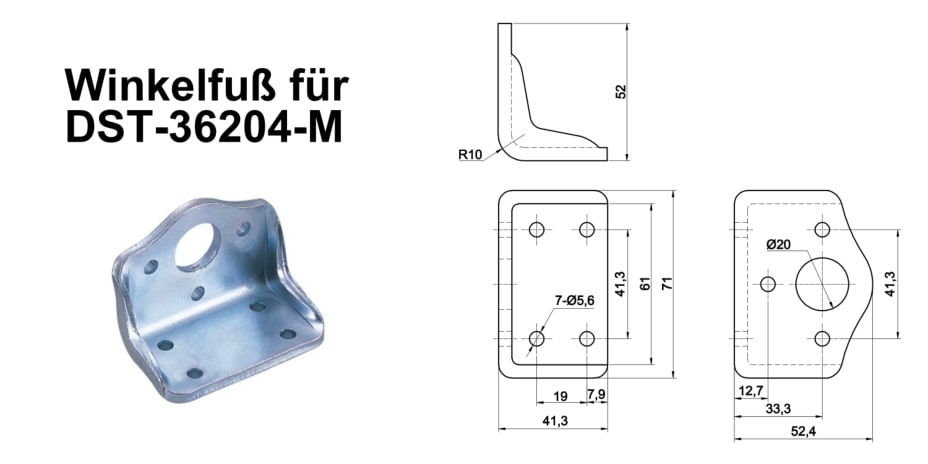

DST-36202-M Optional mounting bracket for nose mounted push-pull toggle clamp, threaded bodyDST-36204-M Optional mounting bracket for nose mounted push-pull toggle clamp, threaded bodyDST-36224-M Optional mounting bracket for nose mounted push-pull toggle clamp, threaded body

DST-SERIES Toggle Clamps Accessories
